Network Architecture
FaxCore Evolution eV6 is architected to scale from single-server SMB installations to high-availability, clustered multi-datacenter enterprise environments.

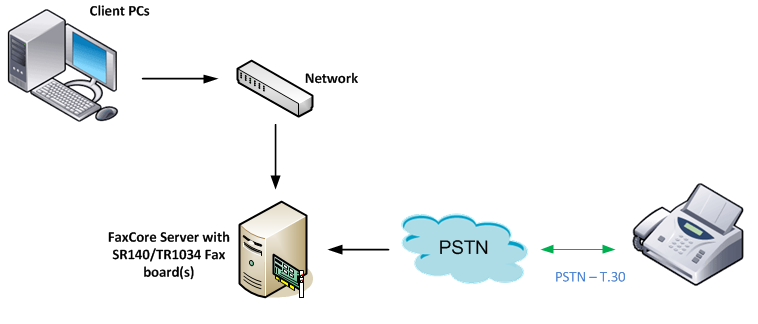

Stand-Alone Architecture
In a stand-alone deployment, all FaxCore services (IIS Web Server, SQL Database, Core Dispatcher, Render Agent, and FaxAgent) run on a single host.
Key Characteristics:
- Simplicity: Single Windows Server instance to patch, license, and maintain.
- Telephony: Connects via enterprise software FoIP SIP/H.323 stacks (TE-SYSTEMS XCAPI, Enghouse Brooktrout SR140) and etherFAX cloud hybrids.
- Ideal For: Organizations with up to 8–16 lines and localized departmental transmission needs.
N-Tier / Multi-Server Distributed Architecture
For enterprise resilience, high-throughput rendering, and geographical survivability, FaxCore eV6 supports an N-Tier architecture separating presentation, business logic, rendering, telephony, and data storage.
Architectural Benefits:
- Remote FaxAgent Pools: Software FoIP stacks and SIP gateways reside on dedicated FaxAgent servers located close to local network infrastructure or remote branch offices.
- Dedicated Render Nodes: CPU-intensive document conversion (PDF rasterization, PCL parsing, OCR) can be offloaded so client web requests remain responsive.
- Clustered SQL Server: Supports SQL Server AlwaysOn Availability Groups and failover clustering for zero data loss.
- Resilient Document Store: All fax documents, attachments, and transmission logs are stored on resilient SAN/NAS storage, independent of individual application nodes.
